Technical Specifications:

•  LCD Type: TN, HTN, STN, FSTN, positive mode

•  Background Color: blue, yellow/green, grey

•  Display Mode: Transmissive, reflective, transflective

•  Viewing Direction: 6 o'clock or 12 o'clock

•  Polarizer Type: general durability, medium durability, high durability

•  Typical Thickness: 1.1mm

•  Driver Method: 1/4 duty, 1/3 bias or on request

•  Operating Voltage: 2.7V~5.0V 64Hz

•  Operating Temperature: -20℃~+70℃; -30℃~+80℃; -40℃~+85℃

•  Connector: Pin, any length is available

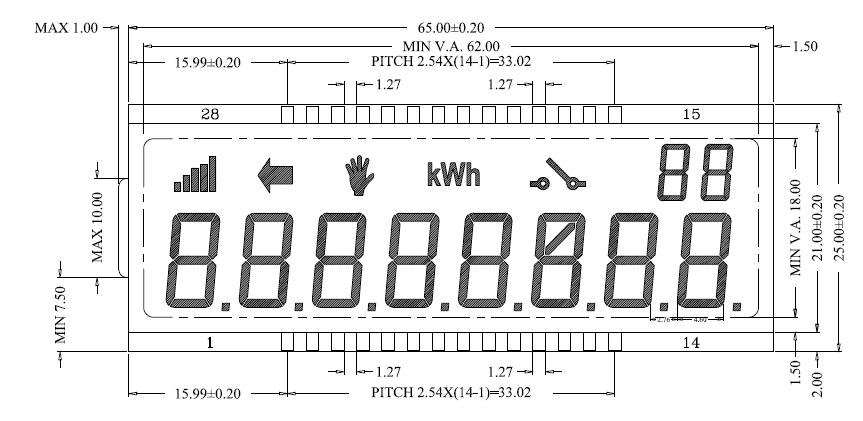

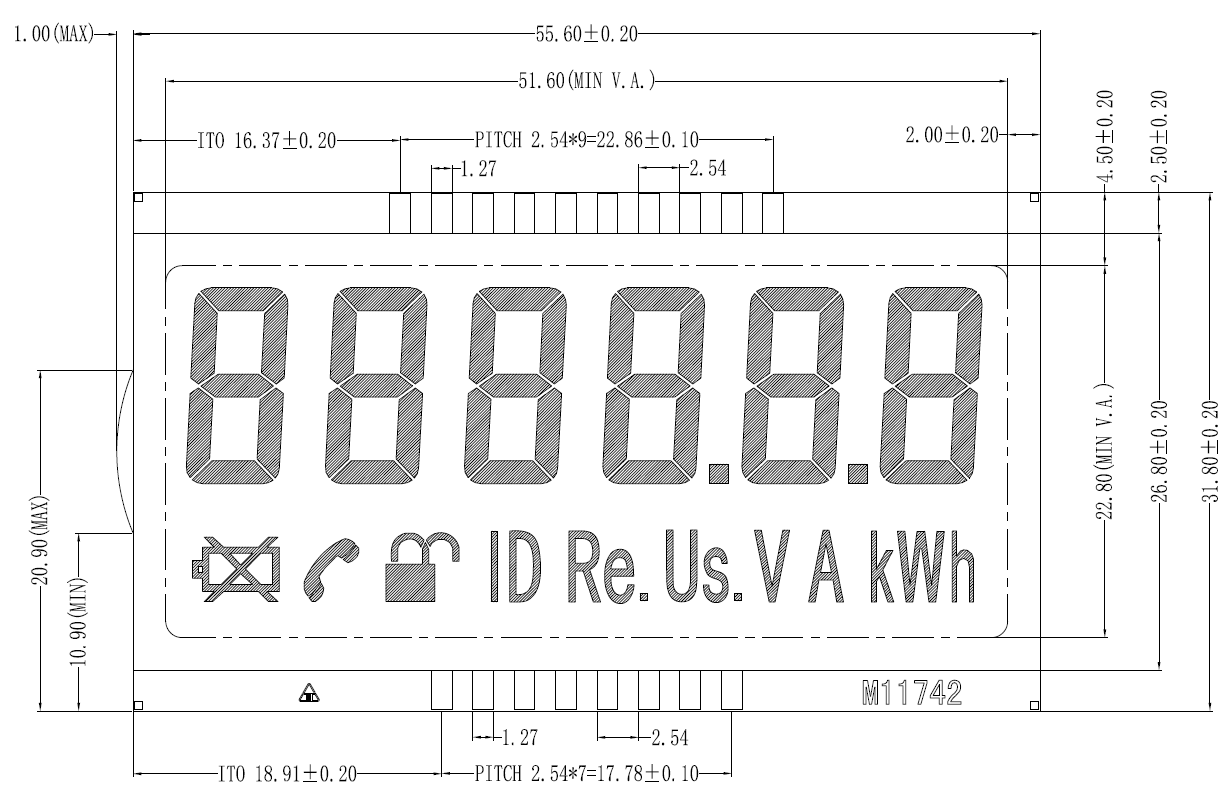

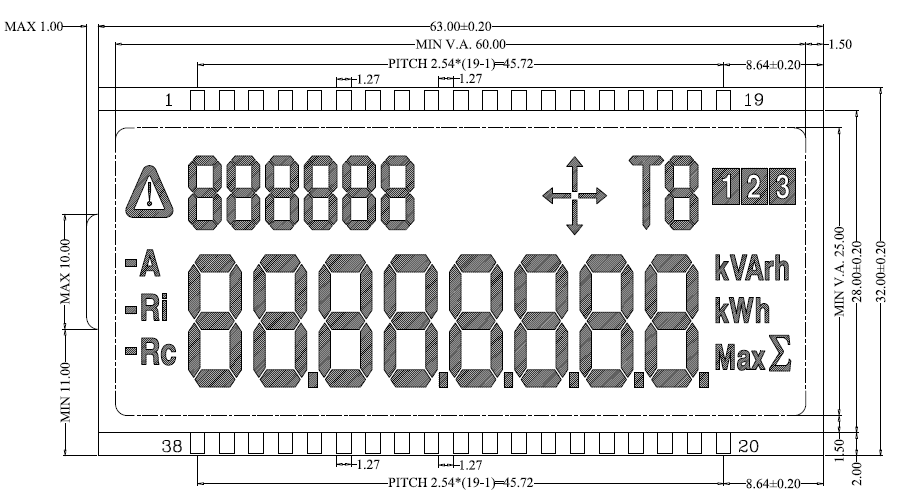

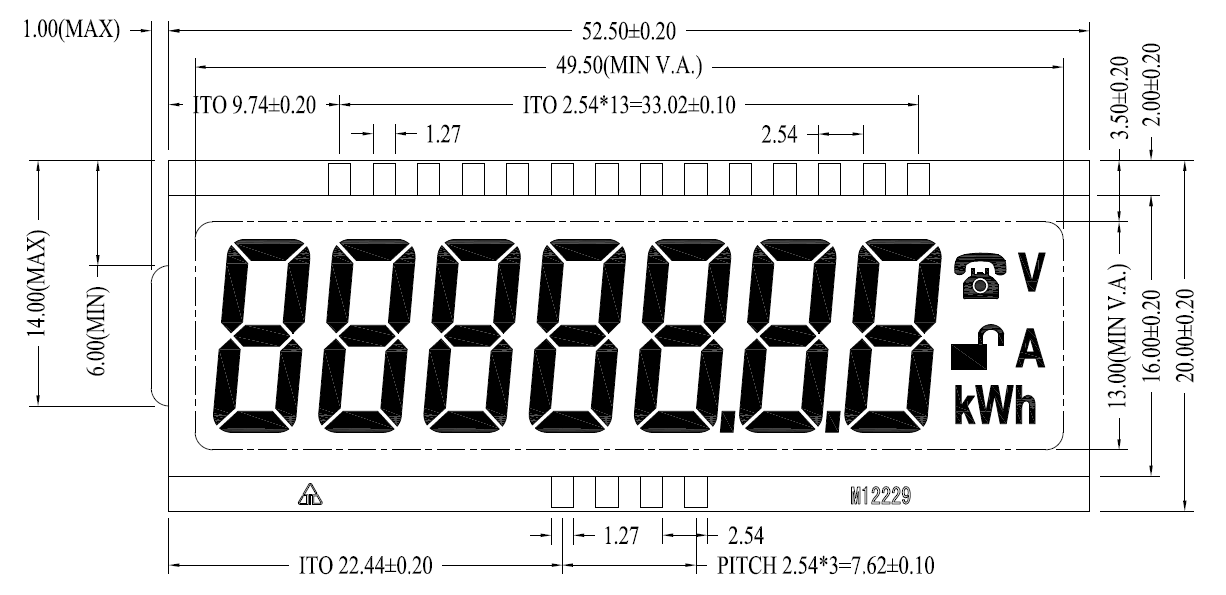

Model Type:
